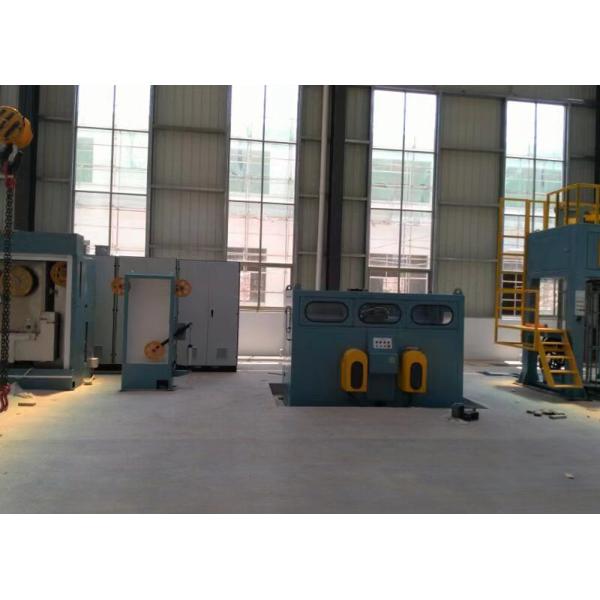

8mm Copper Rod Breakdown Machine Wire Drawing Machinery With Annealer

Product Categories

YUYANG MACHINE Co., Ltd.

Contact Now

Brand Name : yy

Model Number : yy-11-1

Certification : CE, CCC, CE, ISO

Place of Origin : dongguan,china

MOQ : 1 set

Price : 130000$-180000$

Payment Terms : T/T

Delivery Time : 70 days after advance payment

Packaging Details : 2 set 40 feet container

motor : simens

main power : 185kw

plc : siemens

copper size : 8mm to 1.67-3.5mm

inverter : yaskawa

take up : double take up

Contact Now

11 passes Copper Rod Breakdown Machine
Machine model	TXC/450-11
Inlet diameter(mm)	Φ8mm
Outlet diameter(mm)	Φ1.67-Φ3.0mm
Max.Drawing speed(m/s)	25m/s
Number of drawing dies	13
Max. Capstan diameter(mm)	Φ450mm
Fixed speed capstan diameter(mm)	Φ450mm
Main motor power(Kw)	DC 250Kw
Fixed speed capstan motor power(Kw)	DC 75Kw
Auto dual spooler motor power(Kw)	2xDC30Kw
Coiler type take-up motor power(Kw)	AC 15Kw
Transmission type	Precision helical gear
Pay-off	High-stand
Tension control	Pneumatic balance by swing arm
Lubrication type	Full immersion lubrication
Take-up bobbin size	PND500,PND630
Brake	Pneumatic brake
Power Source	380 volt - 3 phase/50Hz

8mm Copper Rod Breakdown Machine Wire Drawing Machinery With Annealer

Product Tags:

8mm wire drawing machinery
